      SAP224
      QUADRUPLE OPERATIONAL AMPLIFIERS

      The SAP224 consist of four independent, high-gain, frequency- compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground.

      Low Input Bias and Offset Parameters.


      Main feature

      • Wide Single−Supply Range: 3V~32V

      • Low Supply-Current Drain, 0.8mA Typ

      • Common-mode input voltage range includes ground

      • Low Input Bias and Offset Parameters

      • Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage 32V

      • Open-Loop Differential Voltage Amplification: 100V/mV

      • Internal Frequency Compensation


      Ordering Information
      Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
      SAP224SB SOP-14-225-1.27 SAP224SB Halogen free Tube
      SAP224SBTR SOP-14-225-1.27 SAP224SB Halogen free Tape&Reel

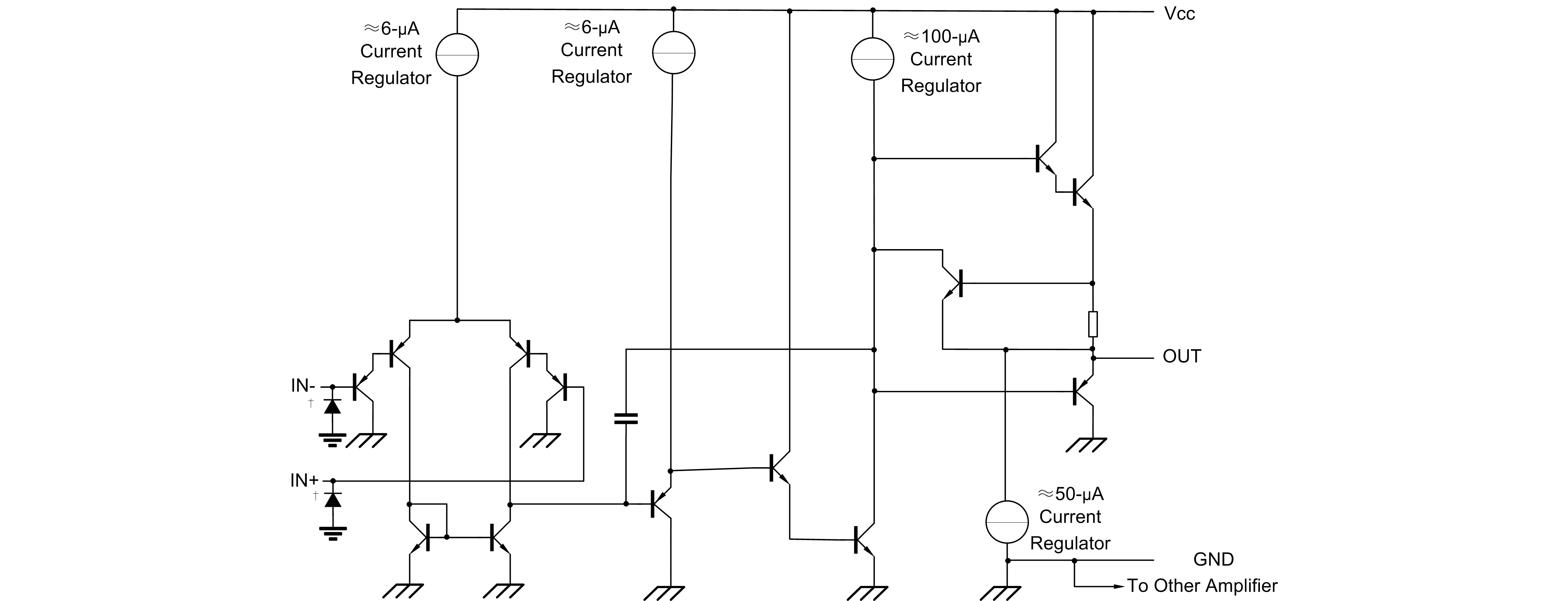

      Block Diagram


      Documents
      title Types of Size (KB) date Download the latest English version
      SAP224 0 1970-01-01 SAP224 Datasheet
